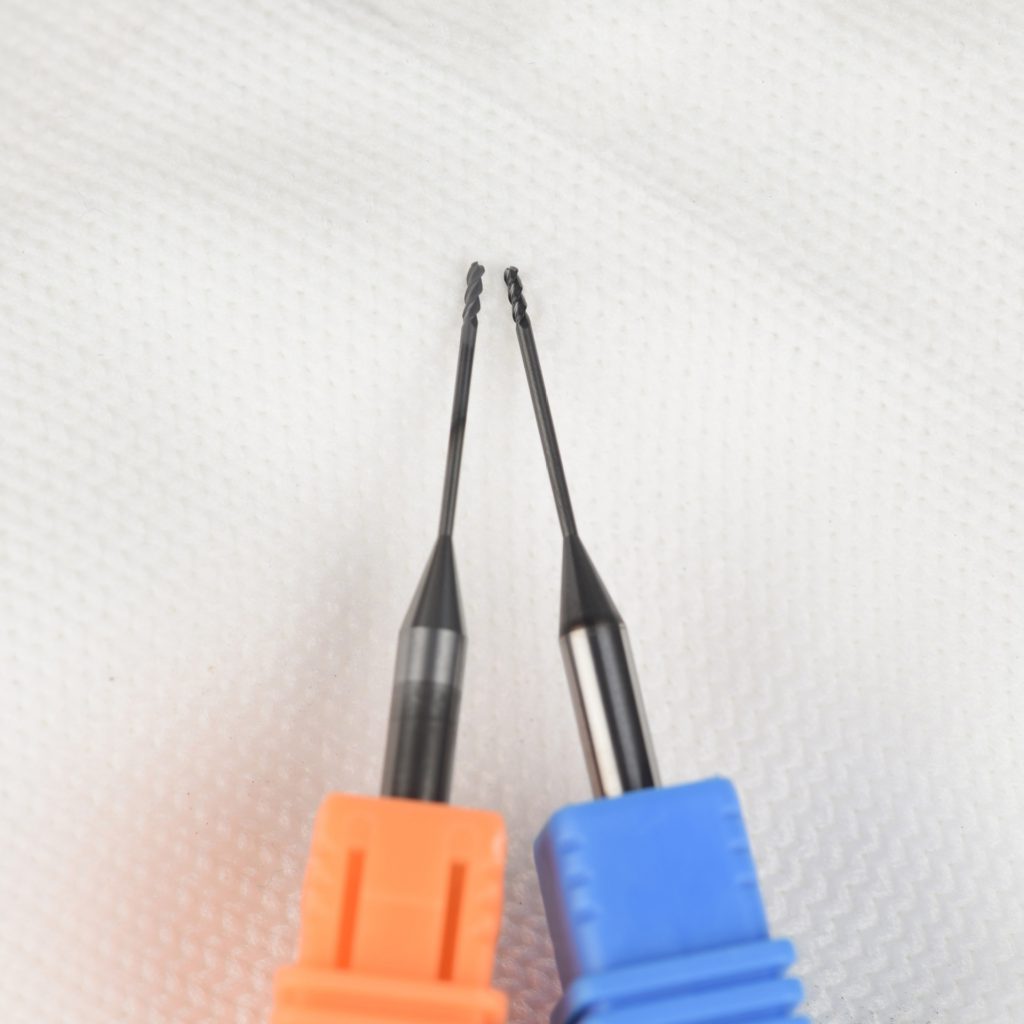

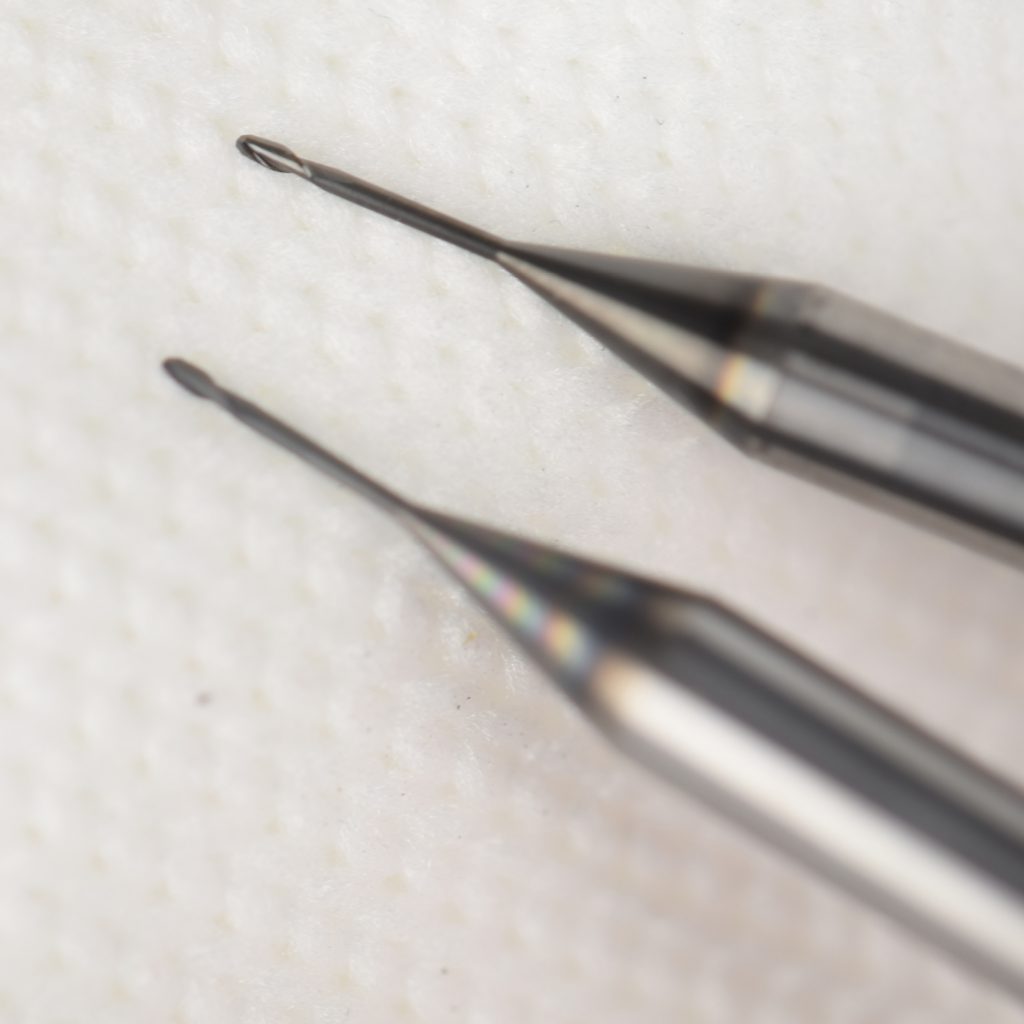

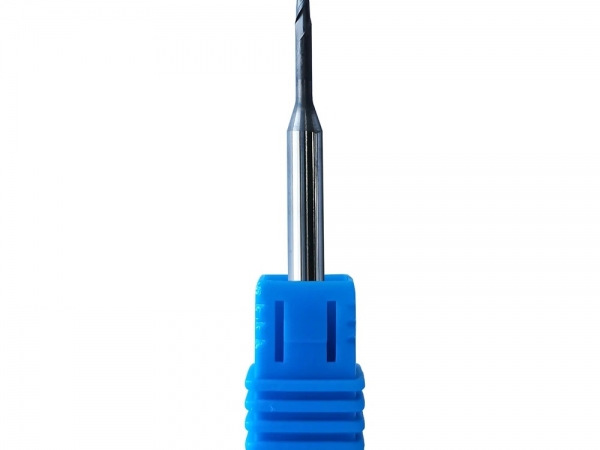

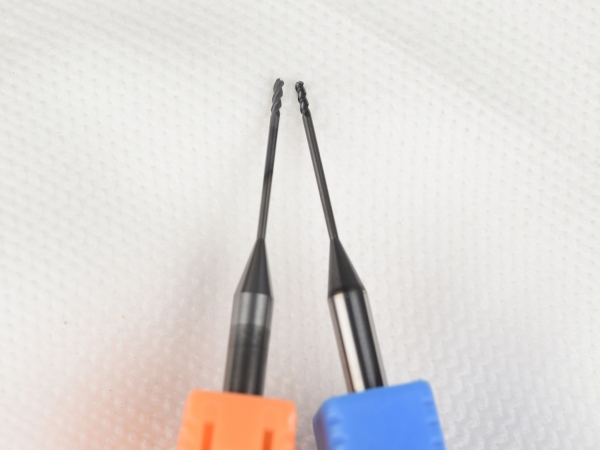

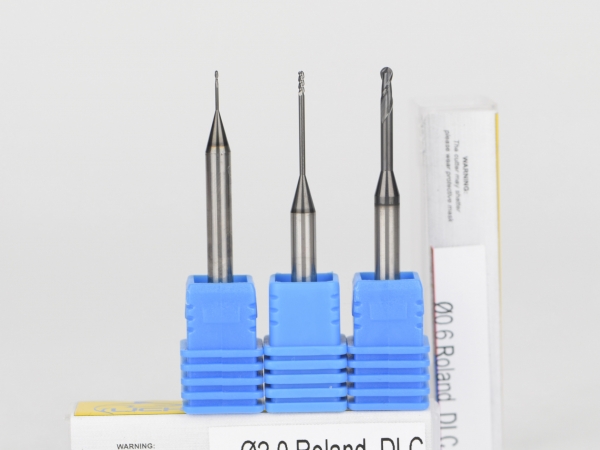

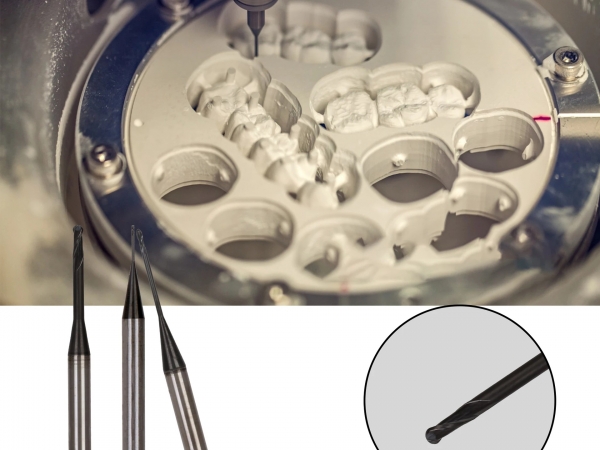

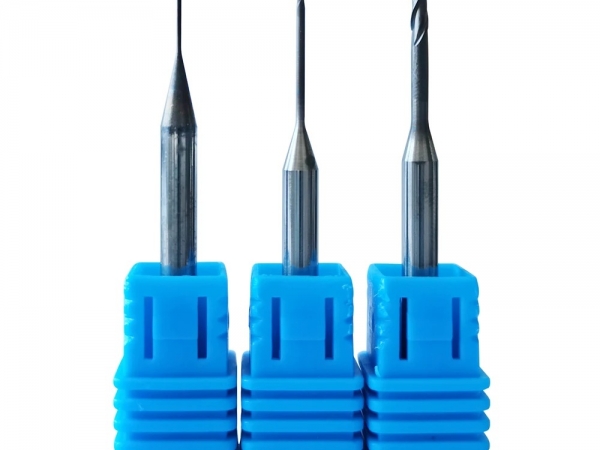

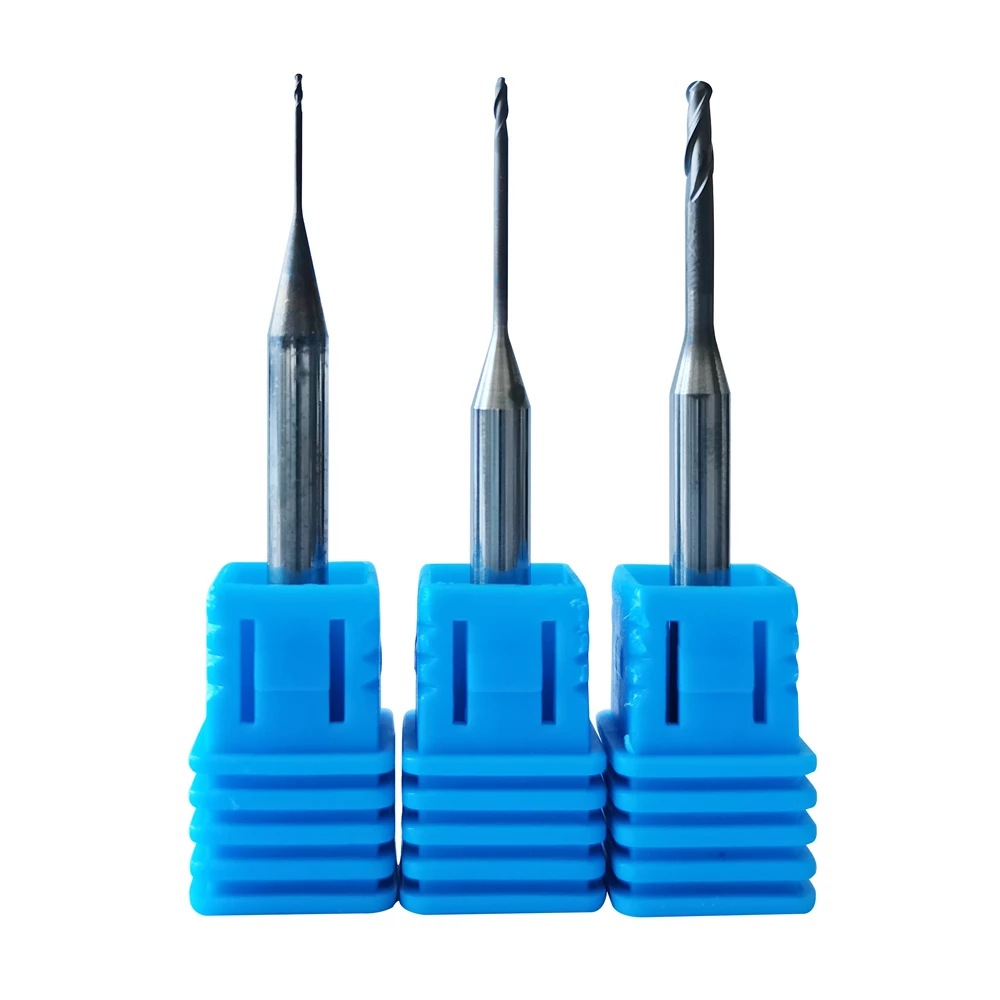

Supply Roland DLC Zirconia Burs
| Product Information | |||
| Origin | Tianjing, China | Series | Dental Bur |
| Brand | MSK | Cutting Edge Form | 2 Blade/3 Blade |
| Ball Diameter (Mm) | 0.6, 1, 2 | Material | Very Fine Grained Cemented Carbide Co6% |
| Chamfer Angle | 45 | Type | Forming Cutter |
| Minimum Cutting Diameter At The Center (Mm) | 0.6 | Number Of Slots | 2/3 |
| Contour Radius (Mm) | 0.6 | Blade Length | 6-16 (Mm) |
| Cutting Diameter (Mm) | 0.6~2 | Blade Diameter | 0.6~2(Mm) |
| Maximum Depth Of Cut | 25 | Shank Diameter | 4 (Mm) |
| Number Of Effective Cutting Edges Around | 2/3 | Full Length | 50 (Mm) |
| Functional Length (Mm) | 1~6 | Whether To Coat | Coating |
| Handle Form | Straight Handle | Applicable Machine Tools | Roland |
| Shank Diameter (Mm) | 4 | Processing Range | Zirconia, Glass Ceramics |
| Standard | All-In-One | Specifications (Diameter*Full Length) | 4*50(Mm) |
| Useful Length (Mm) | 1-6 | Maximum Cutting Diameter (Mm) | 2 |
| Suggested Router Speeds | |
| Bit Diameter | Maximum Speed |
| 1″(25mm) | 24,000RPM |
| 1-1/4″-2(30-50mm) | 18,000RPM |
| 2-1/4″-2-1/2(55-65mm) | 16,000RPM |
| 3″-3-1/2(75-90mm) | 12,000RPM |
Feature:
- Using high-quality materials, precision manufacturing.
- Strict quality inspection, stable quality.
- Wide range of applications, applicable to a variety of scenarios.
Instructions for use:
- In order to prevent the tool from being twisted due to excessive pressure, all the tools are designed to rotate clockwise.
- When all the knives are finished, they pass the balance test to ensure that there is no doubt of radial runout. In order to ensure that the knives have no swing and runout during use, please pay attention to selecting appropriate mechanical equipment and excellent jackets.
- The appropriate size of the jacket must be selected. If it is found that the jacket is not round enough or worn, it will cause the jacket to not clamp the tool properly and correctly. Please replace the intact jacket with standard specifications immediately to avoid the tool. Under high-speed rotation, the handle is vibrated, and the dangerous situation of flying off or twisting occurs.
- The tool handle should be installed in accordance with EU regulations. For example, the clamping depth of the shank diameter of 12.7mm must reach 24mm to maintain the pressure bearing range of the tool handle.
- Rotation speed setting: The tool with larger outer diameter should be set according to the following tachometer, and advance slowly to maintain a constant advancing speed, and do not stop the advancing action during the cutting process.
- When the tool is blunt, please replace it with a new one, and do not continue to use it to avoid tool breakage and work-related accidents.
- When using a tool, please select a tool with a blade length larger than that of the workpiece. For example, if you want to mill a groove with a depth of 12.7m, please use a tool with a blade length of 25.4mm, and avoid using a tool with a blade length equal to or less than 12.7mm.
- When operating and processing, please wear safety glasses and push the handle safely; when using desktop mechanical equipment, it is also necessary to use an anti-rebound device to avoid accidental rebound of the workpiece during high-speed cutting.
