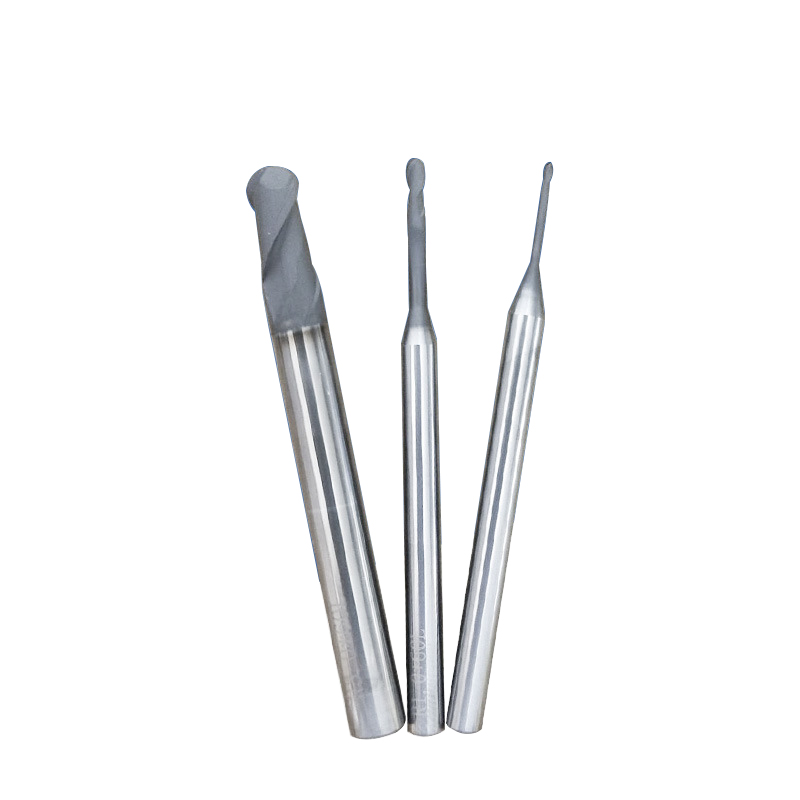

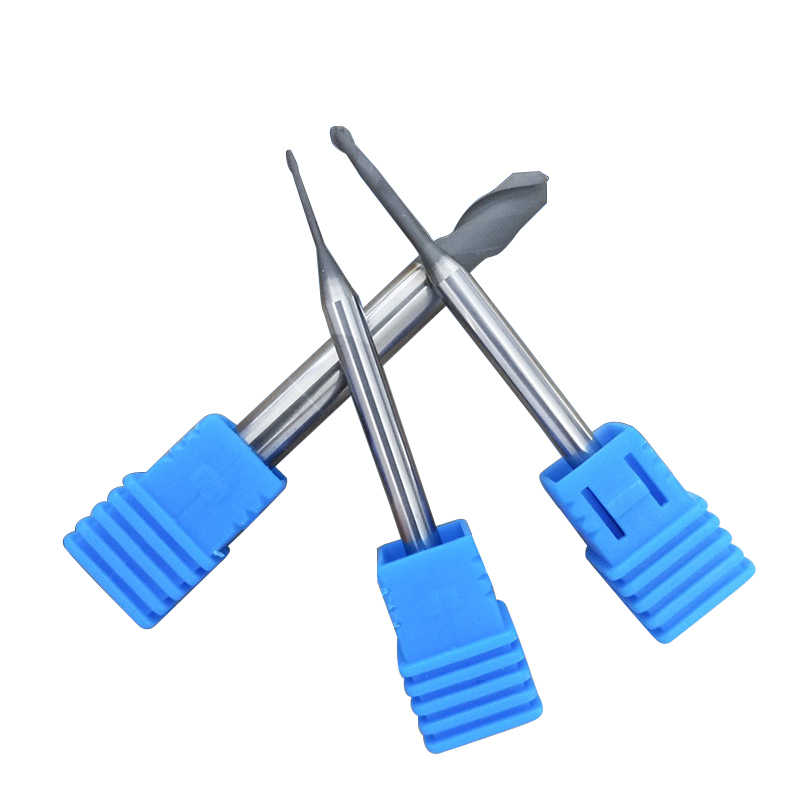

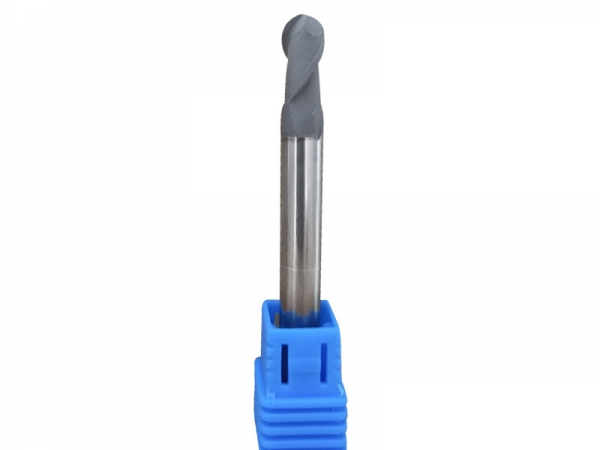

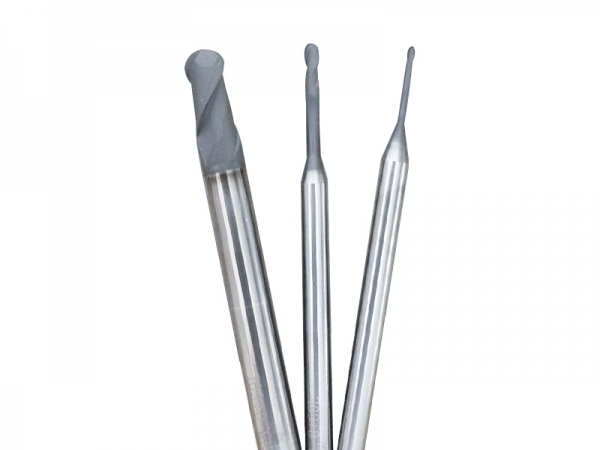

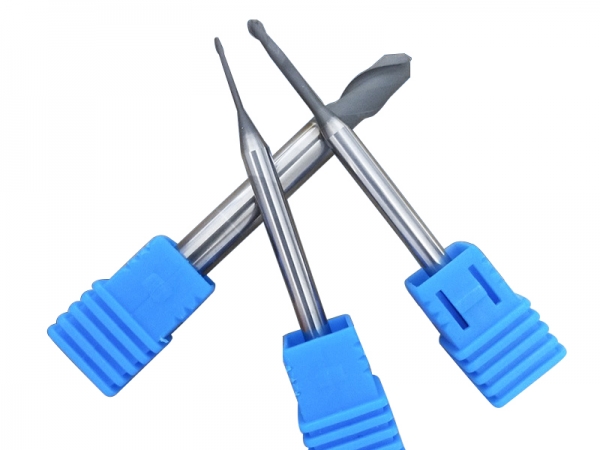

Diamond Coating Round Diamond Cutters
| Product Information | |||
| Origin | Tianjing, China | Series | U Series |
| Brand | MSK | Cutting Edge Form | Helical Structure |
| Ball Diameter (Mm) | 3 | Material | Carbide |
| Minimum Cutting Diameter At The Center (Mm) | 4 | Type | Half Round Key Milling Cutter |
| Contour Radius (Mm) | 1 | Number Of Slots | 2 |
| Cutting Diameter (Mm) | 2 | Blade Length | 4 (Mm) |
| Maximum Depth Of Cut | 10 | Blade Diameter | 2.0 (Mm) |
| Number Of Effective Cutting Edges Around | 1 | Shank Diameter | 4 (Mm) |
| Functional Length (Mm) | 15 | Full Length | 60 (Mm) |
| Helix Angle | 30 | Whether To Coat | Yes |
| Handle Form | Round Handle | Applicable Machine Tools | Milling Machine |
| Shank Diameter (Mm) | 4 | Processing Range | 304, 316, 316L Stainless Steel, Iron, Cast Iron, Etc. |
| Standard | Metric | Specifications (Diameter*Full Length) | 6*15*50*4F（Mm） |
| Useful Length (Mm) | 15 | Maximum Cutting Diameter (Mm) | 6 |
| Specification | Shank Diameter | Blade Length | Effective Length | Full Length | Number Of Blades | Unit Price Without Tax |
| R0.15 | 4 | 0.5 | 1.5/3 | 50 | 2 | 230 |
| R0.2 | 4 | 0.6 | 2/3/4/6 | 50 | 2 | 230 |
| R0.25 | 4 | 0.7 | 4/6 | 50 | 2 | 230 |
| R0.3 | 4 | 1 | 4/6/10 | 50 | 2 | 230 |
| R0.4 | 4 | 1.2 | 4/6/10 | 50 | 2 | 230 |
| R0.5 | 4 | 1.6 | 6/10 | 60 | 2 | 160 |
| R0.5 | 4 | 1.6 | 15/20 | 60 | 2 | 170 |
| R0.75 | 4 | 2.5 | 10/15 | 60 | 2 | 160 |
| R0.75 | 4 | 2.5 | 20/25 | 60 | 2 | 170 |
| R1.0 | 4 | 3 | 10/15 | 60 | 2 | 160 |
| R1.0 | 4 | 3 | 20/25/30 | 60 | 2 | 170 |
| R1.0 | 4 | 3 | 25/30/40 | 75 | 2 | 190 |
| R1.0 | 4 | 3 | 40 | 100 | 2 | 200 |
| R1.5 | 3 | 6 | * | 60 | 2 | 160 |
| R1.5 | 4 | 6 | 15/20/25 | 60 | 2 | 180 |
| R2.0 | 4 | 10 | * | 60 | 2 | 160 |
| R2.0 | 4 | 10 | 20 | 75 | 2 | 180 |
| R2.0 | 4 | 10 | 25/40 | 100 | 2 | 200 |

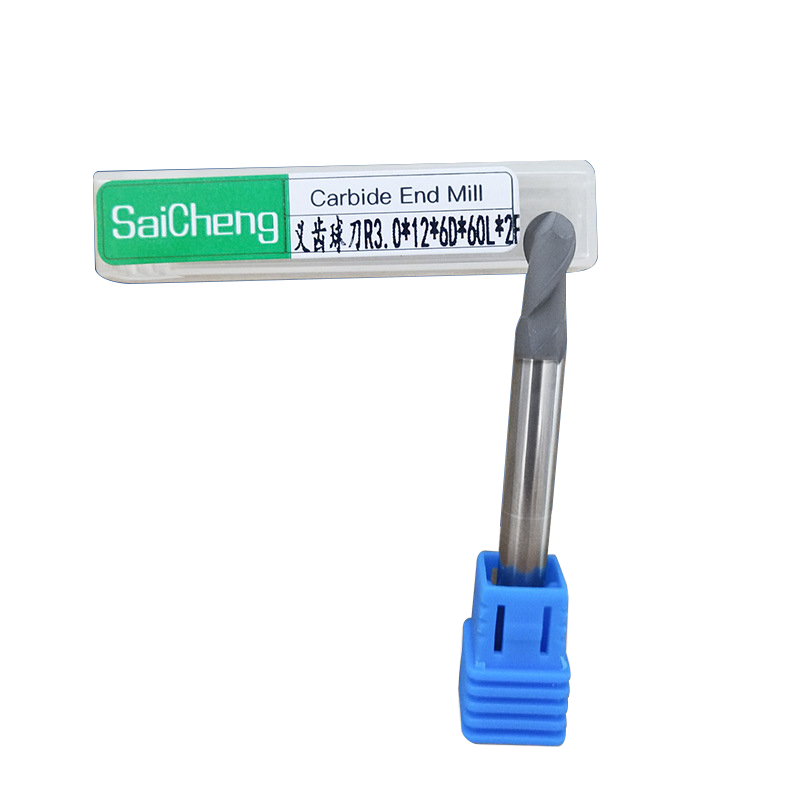

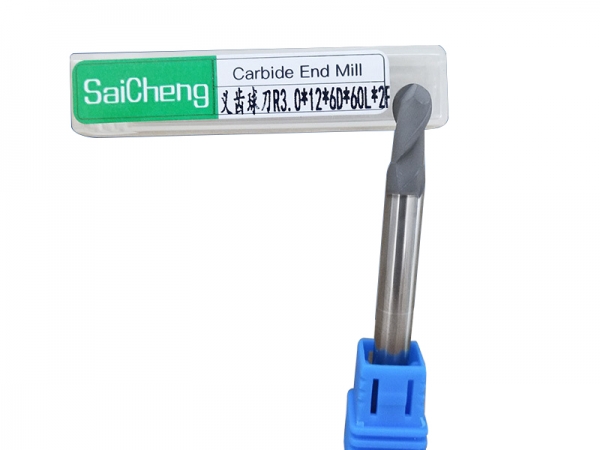

| R3.0 | 6 | 12 | * | 60 | 2 | 300 |
| R3.0 | 6 | 12 | 35 | 75 | 2 | 320 |
| R3.0 | 6 | 12 | 40 | 100 | 2 | 320 |
| R3.0 | 6 | 20 | 40 | 150 | 2 | 380 |
| R4.0 | 8 | 15 | 40 | 80 | 2 | 420 |
| R4.0 | 8 | 15 | 60 | 100 | 2 | 480 |
| R4.0 | 10 | 16 | 60 | 150 | 2 | 520 |
| R5.0 | 10 | 20 | 40 | 80 | 2 | 640 |
| R5.0 | 10 | 20 | 60 | 100 | 2 | 680 |
| R5.0 | 10 | 20 | 60 | 150 | 2 | 800 |
| R6.0 | 12 | 25 | 40 | 80 | 2 | 760 |
| R6.0 | 12 | 25 | 60 | 100 | 2 | 800 |
| R6.0 | 12 | 25 | 60 | 150 | 2 | 960 |
Feature:
- Made of tungsten steel, with extremely high hardness and wear resistance. It can maintain the sharpness of the gas and the shape of the abrasive tool for a long time, and the service life is long, which saves the cost and greatly improves the efficiency.
- Sharp and wear-resistant, the surface of the chip removal groove is smooth, the chip removal is fast, and the cutteris not easy to break.
- Population optimization, low friction coefficient for efficient cutting.
